UPA-USB CAN Bus Analyzer
/preliminary information/

Price & Order

Specifications
Standard: ISO -11898
Suitable for 12V and 24V systems
Ports: 1 x CAN 2.0B
Transfer rates: 10 kb/s - 1Mb/s
Supported CAN IDs: 11-bit as well as 29-bit
Connection to PC: USB 2.0 High Speed port (required)
Power via USB cable
Dimensions: 80mm x 42mm x 20mm (3.15" x 1.7" x 0.8")
Tracing CAN bus data traffic
Sending of predefined messages
Sending of logged messages
Six 29-bit filters
Two 29-bit masks
Software filters
Normal and Listen-only modes
Build in waveform analyzer with CAN bus protocol decoder
Tabbed windows

System Requirements
Windows® XP (updated SP1 or later) operating system.
Pentium 3 or higher processor
USB2.0 High Speed port. USB1.1 ports are not supported
64MBytes RAM
32MBytes free hard disk space

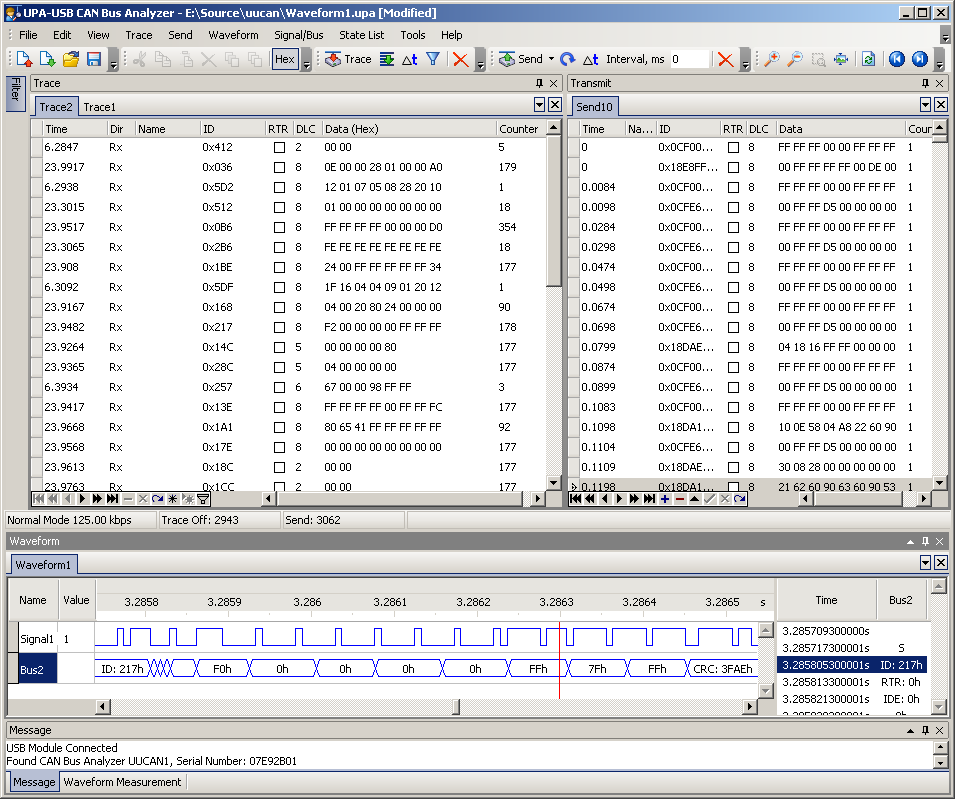

UPA-USB CAN Bus Analyzer Software
Download demo version  v1.0.0.16  30-Sep-08   3.972 MB
/click  image to enlarge/
